Customizable ATEX Certificate Gas Injecting System for Fast and Accurate Refrigerant Charging at Production Line
-
Mettre en évidence
ATEX Certificate Gas Injecting System
,Customizable Gas Injecting System
-
ConditionNeuf
-
Industrie concernéeUsine de fabrication
-
Poids (KG)300
-
Emplacement de la salle d'expositionAucun
-
Vidéo d'inspection de sortieFournit
-
rapport d'essai de la machinePas disponible
-
Garantie des composants principaux1 année
-
Composants de baseMoteur, Pompe
-
TypeCOMPRESSEUR
-
Garantie1 an
-
Service après-vente assuréIngénieurs disponibles pour l'entretien des machines à l'étranger
-
Résolution0.1 g
-
Tension380 V/50 Hz
-
RéfrigérantR22/R410A/R407C/R134A
-
Model NoSystème de charge de réfrigérant CM8600 R32
-
précision± 0,5%
-
degré de vide5Pa~10Pa
-
vitesse de charge60 à 260 g/s
-
ApplicationAir conditionné, distributeur d'eau, congélateur, réfrigérateur
-
PortShanghai Ningbo Tianjin Qingdao
-
Lieu d'origineJiangsu, Chine
-
Nom de marqueCM
-
CertificationCE, ATEX
-
Numéro de modèleCM8600
-
Quantité de commande min1 unité
-
Prix$20,400.00/units 1-2 units
-
Détails d'emballageboîtier en bois, palette pour la machine de remplissage de réfrigérant CM8600
-
Capacité d'approvisionnement50 unités/unités par mois
Customizable ATEX Certificate Gas Injecting System for Fast and Accurate Refrigerant Charging at Production Line
Customizable ATEX Certificate Gas Injecting System for Fast and Accurate Refrigerant Charging at Production Line
| Attribute | Value |
|---|---|
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Weight (KG) | 300 |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Not Available |
| Warranty of core components | 1 Year |
| Core Components | Motor, Pump |
| Type | COMPRESSOR |
| Warranty | 1 Year |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Resolution | 0.1g |
| Voltage | 380V/50HZ |
| Refrigerant | R22/R410A/R407C/R134A |
| Model No | CM8600 R32 refrigerant charging system |
| Precision | ±0.5% |
| Vacuum degree | 5Pa~10Pa |
| Charging speed | 60~260g/s |
| Application | Air conditioner, water dispenser, freezer, refrigerator |
| Port | Shanghai Ningbo Tianjin Qingdao |
CM8600 Dual System Refrigerant Charging Machine for Refrigerator Assembly Line
The CM86 refrigerant charging machine is specially designed for fast speed refrigerant charging at production lines. It features high speed charging, high accuracy, and multiple functions. The machines are compatible with refrigerants of CFC, HFC, HC, etc. The machine can also be customized according to your special requirements.
Key Features
- Adopt CNC technology allowing data processing capability with accurate and easy operation
- Charging/filling liquid gas R134a, R22, R407C, R410A etc. (for R600a, R290, R32 can be customized)
- Siemens PLC and colorful touch screen control system
- High accuracy flow sensors provide precise data with resolution reaching 1~0.1g
- Wonfulay (our own brand) pneumatic booster ensures stable pressure and large charging quantity supply
- Continuous charging/filling quantity up to 99999g with charging rate of 60g~260g
- Automatic prompt function when refrigerant in the cylinder is low
- Adjustable vacuum time and inspection leak time according to requirements
- Wonfulay (our own brand) filling gun improves charging/filling speed
- Wonfulay (our own brand) high vacuum pump provides quick vacuum reaching 5~10Pa
- Includes vacuum, inspection leak, charging/filling, and refrigerant recovery functions
- Repeat filling accuracy ≤ ± 0.5%
- Easy to move

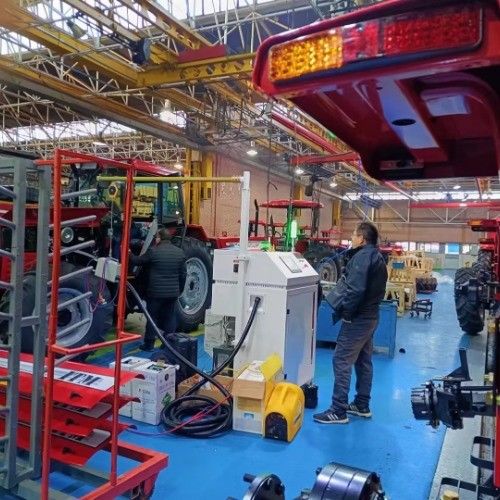

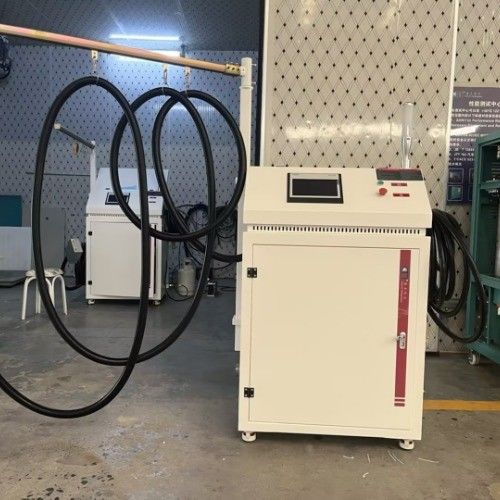

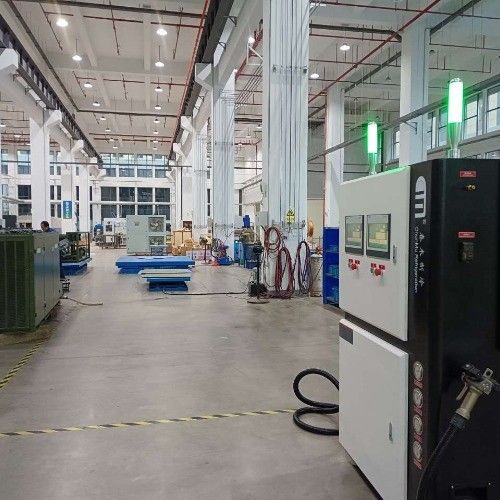

Product Images
